PROnetplan

Planning network load prior to construction

Saving time and money during planning and maintenance

PROnetplan is a design software that makes it possible to preplan a PROFINET network particularly simple. It is used to appraise the network load related to the line depth, the refresh rate and the structure of a plant. This engineering tool enables you to create an ideal network structure with an optimized network load.

Features

  • Displaying the network load for each network connection
  • Adjusting the refresh rate
  • Information of the line depth for each device
  • Adjusting the net load separately for each device
  • Device adjusting in expert mode
  • Adjusting of various network access devices like PROFINET-INspektor® NT or a measuring point like PNMA II
  • Clear device list of all nodes
  • Displaying of security advices
  • Displaying of available ports on switches or devices
  • Comprehensive print function
  • Feature-packed PDF export

The software helps to optimise the system topology and the related network load already during planning. PROnetplan is characterised by a simple handling, a clear structured display and an extensive information content.

Connected with the software PROscan® Active V2 already scanned topology plans can be extended and edited simply by PROnetplan®.

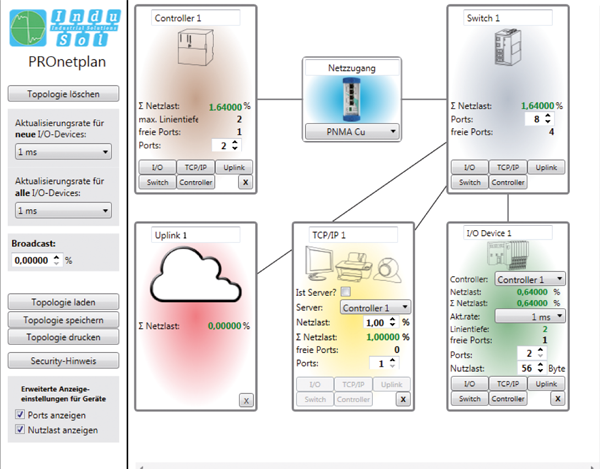

Plan your network structure

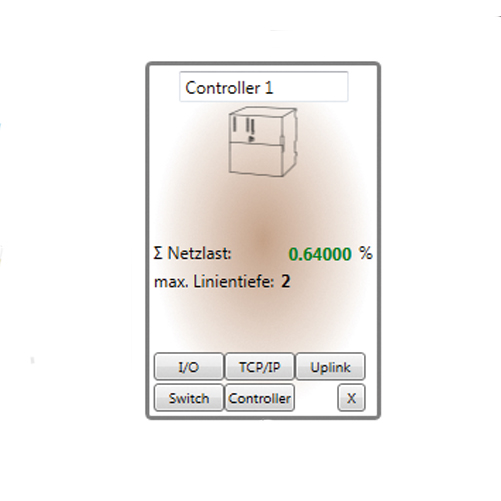

Optimize network load

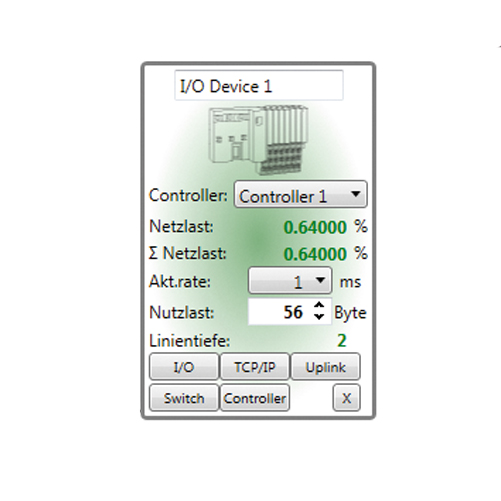

Refresh rate

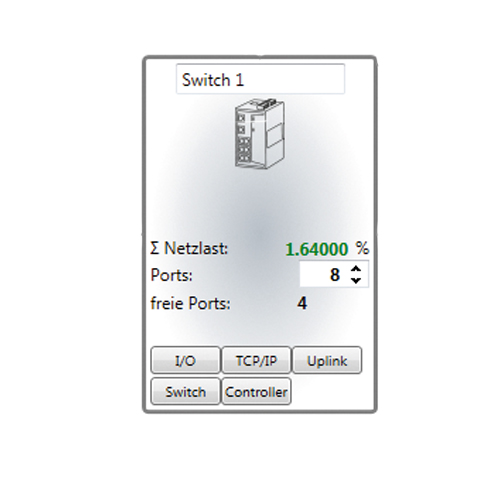

Display of availabel network ports

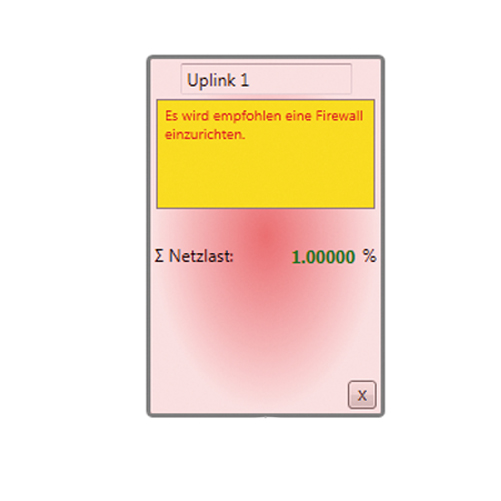

Security advices

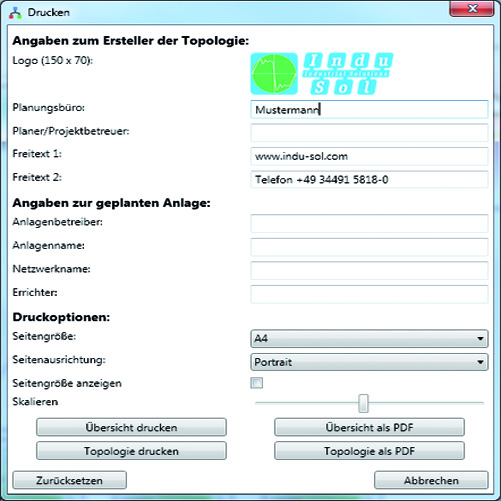

Print function
